Hydrogen Gas Generator, 500mL/min, PG 500 Plus, Grade 6, H2

Hydrogen Gas Generator, 500mL/min, PG 500 Plus, Grade 6, H2

$11,051.00 $9,538.70
(You save $1,512.30)
Part Number:
VC-DB-PHG500-US
Lead Time:
2-3 weeks
Shipping:
Free Shipping on most orders*

Description

The PG Plus 500 Hydrogen Generator provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution. PG-H2 Plus Hydrogen Generators uses the latest polymer electrolyte membrane (PEM) technology to produce pure hydrogen.

Ideal for:

  • Flame ionization detector (FID)
  • Collisions on ICP-MS
  • Small fuel-cell cylinder refills

FEATURES:

  • Flow rate 500 mL/min
  • Purity 99.9996% (grade 6 Hydrogen)
  • Pressure up to 11 bar (160 psi)
  • Unique drying membrane - no desiccant cartridges required
  • Unique 100% titanium electrolytic cell
  • Minimal maintenance
  • 2 year standard warranty
  • Download PDF Spec Sheet

Part# VC-DB-PHG500-EU (230-240V/50-60Hz)
Part# VC-DB-PHG500-US (115V/60Hz)
Part# VC-DB-PHG500-JP (100V/60Hz)

APPLICATIONS

GC APPLICATIONS

  • GC-NPD PLASMA GAS
  • GC-FPD FUEL GAS
  • GC-FID FUEL GAS

ANALYZER APPLICATIONS

  • TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

OTHER LAB APPLICATIONS APPLICATIONS

  • HYDROGENATION REACTORS
  • HYDROGEN FUEL CELLS
Flow ml/min. 500
Purity 99.9996%+
Dew point at 7 bar -25°C (-77°F)
Outlet pressure bar (psi) 0.5 to 11 (7 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality minimum < 1 micro S/cm @25°C - 1 Mohm-cm@25°C - ASTM II
recommended < 0.2 microS/cm @25°C - 5 Mohm-cm @25°C - ASTM II
Internal water tank (liters) 2.5
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on / off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 190
Product Dimensions mm (in.) 230W x 480H x 370D (9W x 19H x 15D)
Product Weight kg (lb) 15 (33)
Shipping dimensions 580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight kg (lb) 19 (42)
Operating Temperature °C (°F) 15 to 35°C (59 to 95°F)
Outlet connection 1/8" Compression
Certification CE, MET, FCC

Product Options and Customizations

  • I/O board
  • Remote control software (RS232 or USB)
  • Cascading hardware (standard or high purity)
  • Autorefill
  • H2 Sensor

Related Products

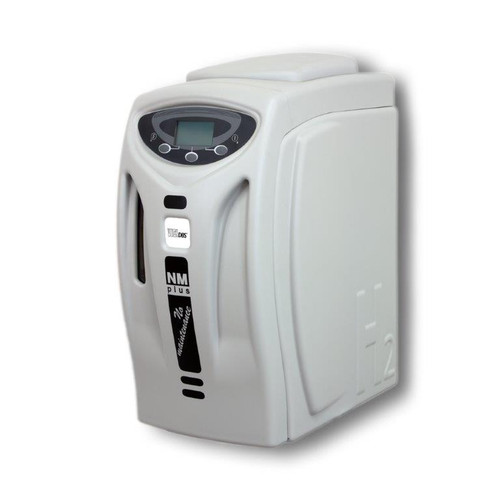

Hydrogen Gas Generator, 500mL/min, NM 500 Plus
