DWK Life Sciences

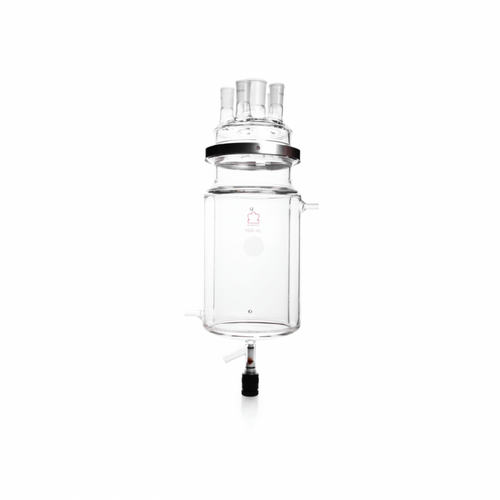

KIMBLE® Kontes® Borosilicate Glass 5L Jacketed Reaction Apparatus
- Part Number:
- DWK-614110-5005
- Lead Time:
- 2-4 weeks
- Shipping:
- FREE SHIPPING on most orders over $50*
- Quantity:
- each
- Color:
- clear
- Material:
- borosilicate glass
- Style:
- container
- Country of Origin:
- Made in the USA
Description
KIMBLE® KONTES® 5L Jacketed Reaction Apparatus, case/1
These reactors feature a 12 mm bottom outlet with a low-interference PTFE plug for easy product removal. The unique removable PTFE baffle cage simulates the effects of in-plant equipment.
- Flush bottom outlets eliminate dead space
- External jacket for either heating or cooling liquid
- Jacket connectors are designed to accommodate 11-14 mm OD of 1/2" tubing
- Connections are made with a 6 " beaded pipe T-bolt stainless / PTFE coupling for superior grease-free vacuum operation
- Approximate wall thickness is 5 mm
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Specifications
- Capacity (mL): 5000
- Center Joint Size (mm): 45/50
- Outer Joint (mm): 24/40
- Overall Height (mm): 570
- Fits Tube ID (in): 44563
- Quantity: 1
MPN:
614110-5005
