Vertical Gas Cylinder Storage Locker, Aluminum, Double 10-20 Cylinders

Vertical Gas Cylinder Storage Locker, Aluminum, Double 10-20 Cylinders

Part Number:
Lead Time:
3 days
Free Shipping on most orders over $50*
Bulk Pricing:
Buy in bulk and save
20 cylinder
gas cylinder storage

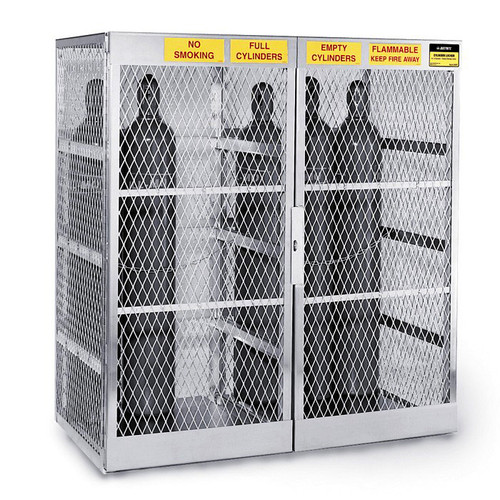

Cylinder Locker for Safe Storage of up to 20 Vertical Compressed Gas Cylinders

Cylinder Lockers from Justrite offer superior features that make them extremely durable and easy-to-use. Constructed of 100% welded aluminum, they will not rust, corrode or discolor. Justrite's expanded .065" (1.65mm) thick metal panels are the strongest in the industry — offering additional resistance to tampering. Welded security lug on front panel door accepts a padlock (not included) for extra protection. Heavier gauge aluminum mesh and extruded (not bent) frame add rigidity. All models have an exclusive solid aluminum roof panel that slants toward the back to shed water and ice.

Lockers meet NFPA 58 for LPG storage and OSHA 1910.110 regulations.

  • Ideal solution for safely securing LPG cylinders
  • 100% welded aluminum
  • Will not rust, corrode or discolor


  • Sized compressed/pressurized gas cylinders, stored vertically
  • Safely holds 10-20 compressed/pressurized gas cylinders with exterior dimensions of 65 x 60 x 32 in (1651 x 1524 x 813 mm)
  • Lightweight material (66% lighter than steel) reduces shipping and transport costs
  • Solid roof panel that slopes back to shed water and ice
  • Pre-drilled anchor holes at each corner that accept 1/2” or 12mm anchor bolts (not included)
  • In compliance with OSHA CFR 29 1910.253, 1910.253(b)(2), 1910.253 (b)(2)(ii), 1910.253 (b)(3), 1910.253(b)(4)(iii); NFPA 51, 4.2


  • Model No.: 23007
  • International Model No.: 230071
  • Material Specifications: Aluminum
  • OSHA Compliance: Yes
  • Complies with NFPA Code 30: Yes
  • Storage Type: Vertical
  • Cylinder Capacity: 20
  • Number of Doors: 2
  • Door Type: Manual
  • Adjustable Shelves: No
  • Dimensions, Exterior: 65" H x 60" W x 32" D
  • 1651mm H x 1524mm W x 813mm D
  • Net Weight, lbs: 169.0
  • Net Weight, kg: 76.7

Ships from either Illinois or California.
