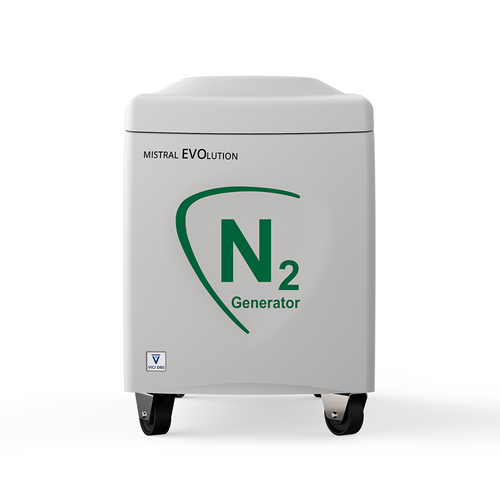

Nitrogen Gas Generator, Mistral Evolution 10 Liter, Oil-Free

VICI Mistral Evolution 10 L Oil Free Nitrogen Gas Generator

It includes an integral oil-free air compressor, delivers a continuous stream of pure nitrogen gas of >99.5% at a flow rate of 10 L/min. It uses the pressure swing adsorption (PSA) system that removes oxygen, carbon dioxide, and water from compressed air. The resulting stream of pure nitrogen is ideal for LCMS techniques and other inert gas applications.

Features:

• Flow rate 10 L/min
• Purity >99.5%
• Pressure up to 3 barg (43 psig)
• Oil free, low noise compressor options
• Proprietary carbon molecular sieve technology
• Complete "plug and play" LC/MS solution

Specifications:

• Nitrogen flow rate L/min: 10
• Nitrogen Purity: >99.5%
• Dewpoint ºC (ºF): -50(-58)
• Outlet pressure barg (psig): 3 (45)
• Technology: Carbon molecular sieve
• Warm up time (minutes): 20
• LED indicators: Power on/off, system ready, errors
• Electrical supply: 110-120V 60Hz / 220-240V 50Hz
• Power consumption watts: 1800
• Product dimensions mm (in): 482W x 641H x 835D (18.9W x 25H x 37D)
• Product weight kg (lbs): 90 (198)
• Shipping dimenisons mm (in): 550W x 800H x 940D (21.6W x 31.4H x 37D)
• Shipping weight kg (lbs): 115 (254)
• Operating temperature ºC ( ºF): 15 to 35 (59 to 95)
• Outlet connection: 6mm OD compression or 1/4''
• Certification: CE, FCC, MET (UL and CSA compliant)

Please note: VICI products are not eligible for coupons and discounts.
