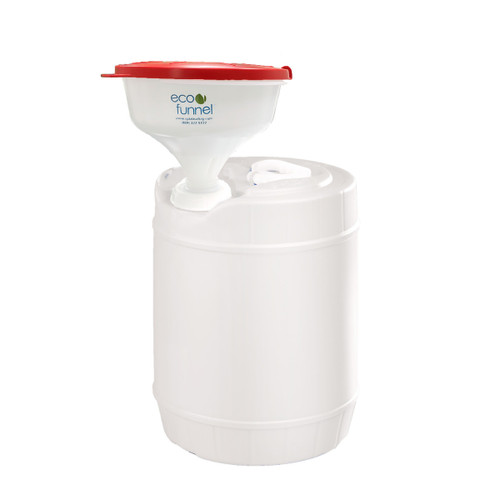

8" ECO Funnel® EF2 System with 5 gal plastic drum, 70mm (FS-70)

This 8" ECO Funnel® system includes a 5 gallon tight head drum with a Rieke 70mm NPS 8TPI closure, also called an FS70 or FS80. The EF2 is the newest version of our 8" ECO Funnel. This patented safety funnel features a long tube to prevent evaporation, a short airlock tube, and a gasket to help keep fumes safely contained. The larger 8" ECO Funnel includes an additional safety feature to prevent over-filling that the 4" version does not have; the secondary air-lock tube creates a small air gap in your waste container, which causes fluid to back up temporarily into the funnel when the container is full. After the screw cap adapter is loosened, the remaining fluid will safely flow into the container and not spill.

Specifications

• Flat lid design prevents accidental pouring when the funnel is closed
• Simple latch design clicks open and shut easily with one hand
• Removable large particle filter catches stir bars and other items before it's too late
• Detachable tube extends into the waste container to minimize chemical evaporation
• Large gasket inside of the lid helps contain remaining fumes
• Secondary air-lock tube helps prevent over-filling
• 2000 mL fluid capacity
• Easy close features a large inner gasket
• Chemical resistant HDPE construction
• Can be custom fitted with up to 8 HPLC waste lines
• Funnel top without the stem measures 9" W x 11"L
• Lid is flat to prevent mistakes while pouring
• Made in the USA

Optional secondary container specifications

This secondary container fits container EC-20020DR and will help your lab meet EPA regulations. This containers 8 gallon capacity meets and exceeds the requirement to hold 110% of the inner container's volume (5 gallon.) Can be used for EF-4-FS70-SYS and EF-8-FS70-SYS. Round polyethylene secondary containers feature re-curved handles for easy lifting and will withstand temperatures from -40° to 160° F.

• Height: 15.5"
• Top (OD) : 17.75" (outer handle to outer handle)
• Top (ID) : 15.5" (not including handles)
• Capacity: 32 Qt
• Made in the USA
• BPA Free

Benefits of ECO Funnel®

• Solves the "open waste container" problem.
• Prevents emissions of 99.9% of volatile waste solvents, acids, and bases in the laboratory.
• Has a unique, patented design that meets most local, state and federal safety regulations and requirements.
• May be used safely for years and resists nearly all corrosive chemicals.
• Is considered an essential lab safety tool by environmental health and safety officers and industry professionals.
• Widely used in Pharmaceutical, Biotech, Academic and Government laboratories.
• Small footprint allows for use in a fume hood or in lab sink.

The ECO Funnel is the ultimate lab safety product for collection of hazardous liquid waste. Its unique, patented design performs two functions, acting as both a sealed waste container and also as a solvent funnel. The 8" ECO Funnel® is made of HDPE and has a 2 Liter fluid capacity. This solvent waste funnel with lid is designed with a custom screw cap which secures it to a specified waste container. It also features a gasket inside the lid. A removable filter is also built into the interior to reduce the loss of stir bars or other large particles in the waste liquid. The ECO Funnel is a pass-through system, meaning chemicals are not sitting in the funnel for any length of time, so it's HDPE construction is compatible with most solvents including those that need to be stored in glass.

ECO Funnel FAQ

Does the ECO Funnel® comply with regulations for emissions from open waste containers?
Yes. The primary function of the ECO Funnel is to reduce the emission of volatile solvents to near zero, while providing a convenient way to handle temporary waste in the lab.

Are there any chemicals that should be avoided when using the ECO Funnel®?
Yes, you should avoid strong acids, bases and oxidizers that can jeopardize HDPE.

Can the ECO Funnel® be kept on the waste bottle 24 hrs a day?
We recommend that the ECO Funnel be removed from a waste container when not in use, just like any other funnel. They are for the collection of temporary waste only. Waste should be frequently transferred to a more permanent waste container for optimum safety.

Read all our ECO Funnel FAQ
