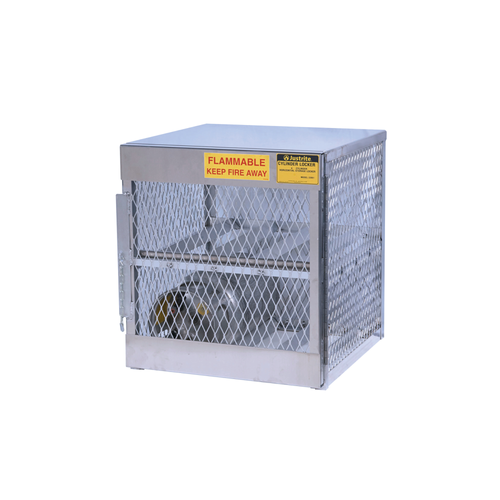

Horizontal Gas Cylinder Storage Locker, Aluminum, 4 Cylinders

4 Cylinder horizontal locker for LPG cylinders (low pressure gas cylinders.) This locker holds 4 - 20 or 33 lb. cylinders.

Cylinder Lockers from Justrite offer superior features that make them extremely durable and easy-to-use. Constructed of 100% welded aluminum, they will not rust, corrode or discolor. Justrite's expanded .065" (1.65mm) thick metal panels are the strongest in the industry — offering additional resistance to tampering. Welded security lug on front panel door accepts a padlock (not included) for extra protection. Heavier gauge aluminum mesh and extruded (not bent) frame add rigidity. All models have an exclusive solid aluminum roof panel that slants toward the back to shed water and ice.

Lockers meet NFPA 58 for LPG storage and OSHA 1910.110 regulations. LPG vertical lockers also comply with Canadian Standards Association CSA-B149-2.

• Ideal solution for safely securing LPG cylinders
• 100% welded aluminum
• Will not rust, corrode or discolor

Features:

• Sized for large, 33 lb (8 gal) liquid petroleum gas (LPG) cylinders and can also accommodate smaller 20 lb (5 gal) use cases
• Safely holds four 20 or 33 lb (9 or 15 kg) liquid petroleum gas cylinders with exterior dimensions of 33.5 x 30 x 32 in (851 x 762 x 813 mm), stored horizontally
• Lightweight material (66% lighter than steel) reduces shipping and transport costs
• Solid roof panel that slopes back to shed water and ice
• Pre-drilled anchor holes at each corner that accept 1/2” or 12mm anchor bolts (not included)
• In compliance with OSHA CFR 29 1910.253(b)(2), 1910.253 (b)(2)(ii), 1910.253 (b)(3),1910.253(b)(4)(iii) ; NFPA 58 8.4.2, 8.4.2.1, 6.19.4.2, 11.13.2, 11.13.2.1, 11.13.2.2, 11.13.2.3, 11.13.2.4

Specifications:

• Model No.: 23001
• International Model No.: 230011
• Material Specifications: Aluminum
• OSHA Compliance: Yes
• Complies with NFPA Code 30: Yes
• Storage Type: Horizontal
• Cylinder Capacity: 4
• Number of Doors: 1
• Door Type: Manual
• Number of Shelves: 1
• Adjustable Shelves: No
• Dimensions, Exterior: 33.5" H x 30" W x 32" D
• 851mm H x 762mm W x 813mm D
• Net Weight, lbs: 65.0
• Net Weight, kg: 29.5

Ships from either Illinois or California.

Efficiently store and secure your LPG cylinders with our Horizontal Gas Cylinder Storage Locker, constructed from robust 100% welded aluminum. This durable locker is designed to hold four 20 or 33 lb. low pressure gas cylinders, providing a solution that ensures safety and accessibility.

The design incorporates expanded .065" (1.65mm) thick metal panels, providing exceptional strength and resistance to tampering. The locker features a welded security lug on the front panel door, compatible with a padlock (not included), allowing for enhanced security. The slanted solid aluminum roof panel effectively sheds water and ice, further protecting your cylinders.

• Ideal solution for safely securing LPG cylinders.
• 100% welded aluminum construction ensures durability.
• Resistant to rust, corrosion, and discoloration.
• Accommodates both 20 lb and 33 lb liquid petroleum gas (LPG) cylinders.
• Horizontal storage design offers stability and easy access.
• Lightweight material is 66% lighter than steel, reducing shipping costs.
• Pre-drilled anchor holes at each corner for easy installation.
• Compliance with OSHA regulations and NFPA codes guarantees safety.

With exterior dimensions of 33.5 x 30 x 32 in (851 x 762 x 813 mm) and a net weight of 65 lbs (29.5 kg), this locker is not only spacious but also portable. Ships from either Illinois or California, ensuring prompt delivery. Ensure your LPG cylinders are stored securely and in compliance with relevant safety standards with our Horizontal Gas Cylinder Storage Locker.
