Justrite® Large Metal Drum Funnel, Self-Closing Lid, 6" Flame Arrester, Groundable

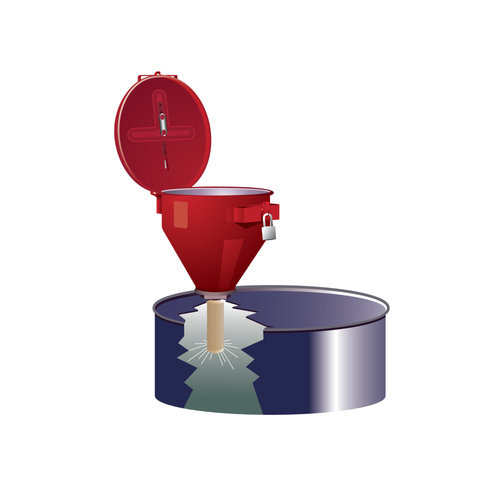

Justrite wide mouth metal drum funnel with self-closing lid and 6" (152mm diameter) flame arrester

Unlike plastic, you can ground a metal funnel. Justrite wide mouth drum funnels are for transferring liquids into the relatively small 2" bung on a 30 or 55 gallon drum. Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum's flammable contents. Heavy 18-gauge galvanized steel, with electrostatically applied epoxy powder-coat finish, provides durability and chemical resistance. Self-close models have a fusible link that melts at 165ºF (74ºC) shutting the cover automatically in case of a fire to extinguish the flames.

• Screws onto 2" NPT
• Wide-mouth opening with hinged, stay-open lid
• 18-gauge galvanized steel with durable epoxy powder coat finish
• Self-closing in case of fire
• Built in brass flame arrestor to absorb and dissipate heat, preventing an ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum's flammable contents
• Accepts a lock to prevent unauthorized access
• Complies with EPA and OSHA regulations, FM approved
• Justrite Part # 08207

Popular funnel No. 08207 with 6" (152mm) flame arrester handles most needs and complies with EPA and OSHA regulations. FM approved.

Note: It is important to segregate incompatible wastes to avoid chemical reactions or explosions. Store drums properly indoors, or in a weather-protected area outside. Funnels can be left in place on the drums. Ships from either Illinois or California.

Features:

• Large steel funnel with self-closing cover and 6-inch flame arrester
• For use with flammables

Specifications:

• Model No.: 08207
• International Model No.: 08207
• Material Specifications: Galvanized Steel
• FM Approval: Yes
• TUV Approval: Yes
• Flame Arrestor, inch: 6
• Flame Arrestor, mm: 152
• Flame Arrestor Material: Brass
• Cover Type / Closure Type: Self Close
• NPS/NPT inch: 0.75
• NPS/NPT mm: 19
• Funnel Dimensions: 10.75" Dia x 10" H, 273mm Dia x 254mm H
• Funnel Capacity - gallon: 2.6
• Funnel Capacity - liter: 9.8L
• Mouth Diameter - inch: 10.75"
• Mouth Diameter - mm: 273mm
• Net Weight, lbs: 7.5
• Net Weight, kg: 3.4

WARNING: This product can expose you to chemicals including lead and lead compounds which are known to the State of California to cause cancer and reproductive harm. Prop 65 Warning
