Optional Ramp can be ordered separately.

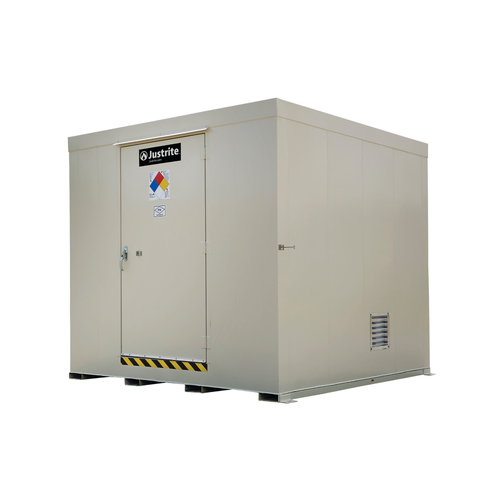

Outdoor Storage Locker, Non-Combustible, 16-Drum

Part Number:
Lead Time:
5 weeks
Free Shipping on most orders over $50*
16 drum
outdoor storage building


Pre-fabricated Outdoor Drum Storage Building, Non-Combustible, 16-Drum. Justrite® prefab hazmat drum storage buildings are ready-made and not customizable (with the exception of the optional Ramp that can be ordered separately.) Contact us for custom storage buildings. Standard Features include:

  • Rugged heavy gauge steel construction — backed by a 15-year structural warranty
  • Secondary containment — leakproof all welded sump
  • Removable, galvanized steel grating
  • Three-point keyed locking hardware
  • Natural draft ventilation
  • NFPA 704 diamond decal provides "Right to Know" information
  • Multiple static grounding connections
  • Anchoring plates for maximum hold down protection
  • Chemical and UV resistant coating, inside and out
  • Forklift channels for easy relocation
  • Meets EPA, NFPA 30 and NFPA 1 requirements
  • FM-approved — including sump capacity and wind/snow load requirements

NOTE: Exterior dimensions include anchor plates and door hardware.

Customize the locker to meet specific applications with a variety of optional features and accessories, including loading ramp, shelving, grounding kit, fire protection and lighting packages.

NOTE: Exterior dimensions include anchoring plates and door hardware.

Model No. and Color Options: 911160 (Bone)
Material Specifications: Heavy gauge steel
Capacity: (16) 55-gallon drums
Sump Capacity: 326 gallon(s)
1234 liter(s)
Load Capacity: 16000 lbs
7257 kgs
Dimensions, Exterior: 115" W x 110" D x 97" H
2921 W x 2794 D x 2464 H (mm)
Dimensions, Interior: 102" W x 102" D x 84" H
2591W x 2591D x 2134H (mm)
No. of Doors: 1
Dimensions, Door: 42" W x 80" H
1067 W x 2032 H (mm)
Door Hinge: Right
Approvals: FM
Compliance: EPA, NFPA 30, NFPA 1

WARNING: This product can expose you to chemicals including lead and lead compounds which are known to the State of California to cause cancer and reproductive harm. Prop 65 Warning
