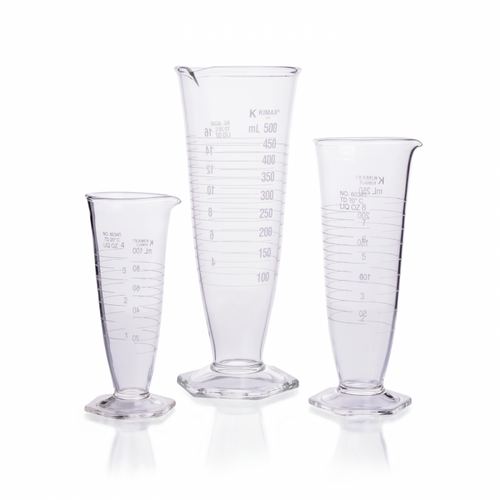

KIMBLE® KIMAX® Borosilicate Glass Pharmaceutical Graduated Cylinder, Class A, TD, conical shaped, 1000 ml

KIMBLE® KIMAX® Pharmaceutical Graduated Cylinder, Class A, TD, conical shaped, 1000 mL, case/1
Graduation in mL and oz, reading is not complicated by meniscus formation.

• Manufactured from borosilicate glass 3.3
• TD' appears on each cylinder and indicates the cylinder is calibrated to deliver
• Double scale features both metric and U.S. customary units
• Scale is durable white ceramic enamel
• Sizes 8 fluid drams (25 mL approx.) and larger are designed from ASTM Specification E1094, Type 2 requirements (also NBS Handbook 44)
• Sizes 4 fluid drams (15 mL), and smaller do not meet ASTM E1094 nor NBS Handbook 44 requirements and therefore may not be used for prescription work in states which adopt these

Specifications

• Capacity (mL): 1000
• Capacity (oz): 32
• Height (mm): 139
• Graduation Intervals (minims, drams, or oz): 2 fl oz
• Graduation Range (mL): 10-50
• Graduation Range: 8-32 fluid oz
• Tolerance (mL): above 200 to 250 ±4.8, above 250 to 350 ±5.6, above 350 to 600 ±6.4, above
• 600 to 800 ±7.2, above 800 ±8.1, at 200 ±4.1
