Unitherm

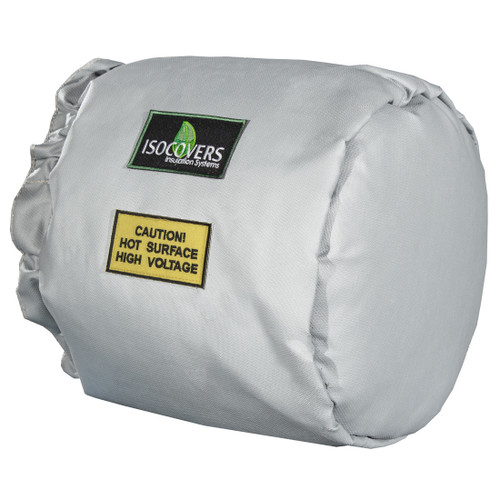

UniTherm ISO-HUB End Pipe Jacket 4"L x 12"W

Part Number:
UNI-IH0412
Lead Time:
3-5 days
Minimum Purchase:
1 unit
Shipping:
FREE SHIPPING on most orders over $50*
Quantity:
each
Size:
12 inchW
  • UniTherm ISO-HUB End Pipe Jacket, 4"L x 12"W
  • UniTherm ISO-HUB End Pipe Jacket, 4"L x 12"W
  • UniTherm ISO-HUB End Pipe Jacket, 4"L x 12"W
  • UniTherm ISO-HUB End Pipe Jacket, 4"L x 12"W
MSRP: $161.46
Price: $146.78
— You save $14.68

Bulk discount rates

Automatically save when you buy in bulk.

Buy 6 - 11 and get 10% off
Buy 12 or above and get 15% off

Description

UniTherm ISO-HUB End Pipe Jacket 4"L x 12"W. Pipe and Valve Insulation

ISOCOVERS Insulation Systems offer a broad base of superior, energy-saving solutions that conserve energy, preserve process temperatures and improve workplace safety. ISOCOVERS Insulation Systems are used on various applications within the process industry where heat conservation and process temperature are concerns.

ISOCOVERS ISO-HUB Insulation Jackets are suitable for end fittings in piping systems, including steam traps, end caps, blind flanges, or the like.

Features & Benefits:
  • ISOCOVERS Insulation Systems create a SAFER WORKING ENVIRONMENT for your employees and increase equipment lifespan by protecting key components from high temperatures.
  • ISOCOVERS Insulation Systems are made with STANDARD, READILY AVAILABLE, OFF-THE-SHELF COMPONENTS that can be easily configured for almost any application requirement.
  • ISOCOVERS Insulation Systems are COMPLIANT WITH OSHA SAFE-TOUCH STANDARDS for exposed heated surfaces (if there is a potential for injury.)
  • ISOCOVERS Insulation Systems deliver an INCREASED CONTROL OF PROCESS TEMPERATURES to enhance production capacity by reducing the amount of energy needed to keep equipment running at high temperatures
Using ISOCOVERS Insulation Systems IN.

The market sectors with attractiveness for waste heat recovery includes:

  • Food and beverage
  • Pharmaceuticals
  • Refineries
  • Chemical plants
  • Pulp and paper mills
  • Textiles
  • Metal processing
  • Rubber
  • Shipbuilding
  • Power generation
  • HVAC industry
APPLICATIONS:
  • End caps, butt weld fittings
  • Caps, socket weld
  • End caps, NPT-threaded
  • Screwed ends, threaded
  • Float & thermostatic steam traps
  • Blind flanges
Specifications:
  • Item: Valve Insulation
  • Length: 4in/102mm
  • Width: 12in/305mm
  • Thickness: 3in/76mm
  • Insulation Material: Mineral Wool, Fiberglass
  • Jacket Material: Silicone Coated Fiberglass Cloth
  • Diameter Range: 2in-4in/51mm-102mm
  • Fastening System: Hook, SS Wire
  • Approx "R" Factor: .48
  • Max Temp /Continuous Use: 900F/483C & 800F/426C
  • Color: Grey
  • Weight: 2.83lbs/1.28kg
  • Fit: Universal
  • Circumference Range: 6in-13in/153mm-330mm
View AllClose

0 Reviews

View AllClose
MPN:
IH0412
